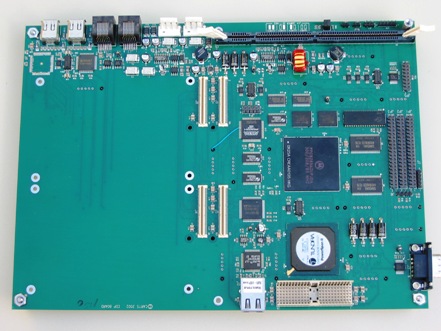

- PowerQUICC II Development Platform
- PowerPC HiP4 MPC826X @ 300 MHz
- SDRAM: 64 MB DIMM, 4MB on-board
- 32 MB AMD MirrorBit Flash
- 512kB SRAM
- Second generation design
-
- Embedded Software
- PPCBoot
- Linux (kernel version 2.4.19)
- Standalone boot or network boot
- 16MB User Flash disk (JFFS)
- Flash programmer utility
|
-
-
-
- Low Power (4W @ 300 MHz)
-
- Communication ports
- 10/100 Ethernet
- IEEE-1394 (x2)
- RS-232 (x2)
-
- Expandability
- Industry standard PMC, CPCI Slots
- LVDS Serial I/O
- GPIO
-
- Customization available
-
|
